LK-S SERIES



STADIUM SCREEN

|P8|P10|




Product Overview:

LEDlink LK-S series is an energy-efficient and stable outdoor LED display screen. This outdoor LED display board can be used in outdoor entertainment areas, stadiums and many other spaces where high-resolution pixel pitches are needed. You can greatly enhance your audiences’enthusiasm and sense of participation through this brilliant stadium LED screen. This outdoor LED display is available in the following pixel pitches: 8mm, 10mm.





Product Features

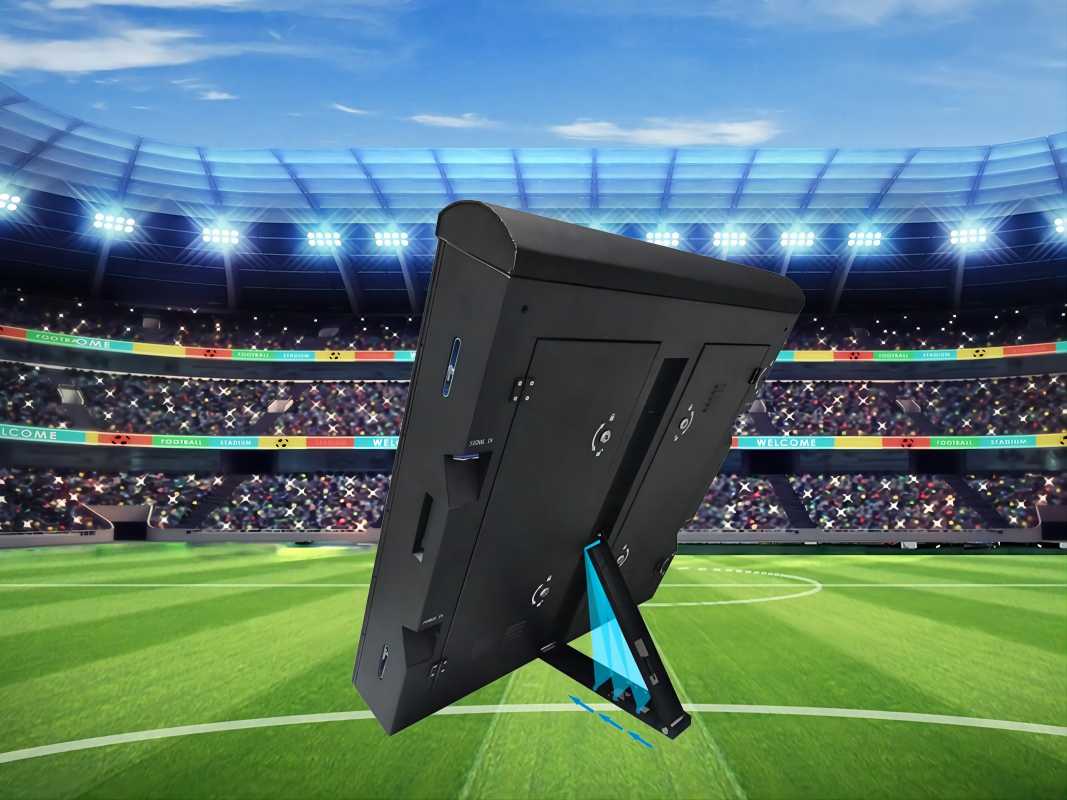

1. Cabinet Design --  A 90-degree adjustable support frame and casters at the bottom of the cabinet ensure the viewing angle of the audience.



2. Soft Mask Protection -- Athletes and LED screens are perfectly protected.



3. High-quality Material -- Designed with cast aluminum, the cabinet not only is light and thin, but also has good heat dissipation and  slows down the aging of the power and module.



4. High Protection Grade -- Protection grade≥IP65. This outdoor LED display screen can operate efficiently in harsh environments.



5. Strong Compatibility -- It can be used as a stadium or rental screen to meet the diversified needs of customers on multiple occasions.



6. Energy Saving -- This stadium LED screen saves about 1/3  than the traditional LED screen, greatly reducing the operating cost of the screen.



7. Professional Stadium Playing Software -- It supports multiple camera video input sources, while supporting DP, HDMD, VGA, SDL, DVD, etc.










uploads/image/20220925/1664102363.jpg

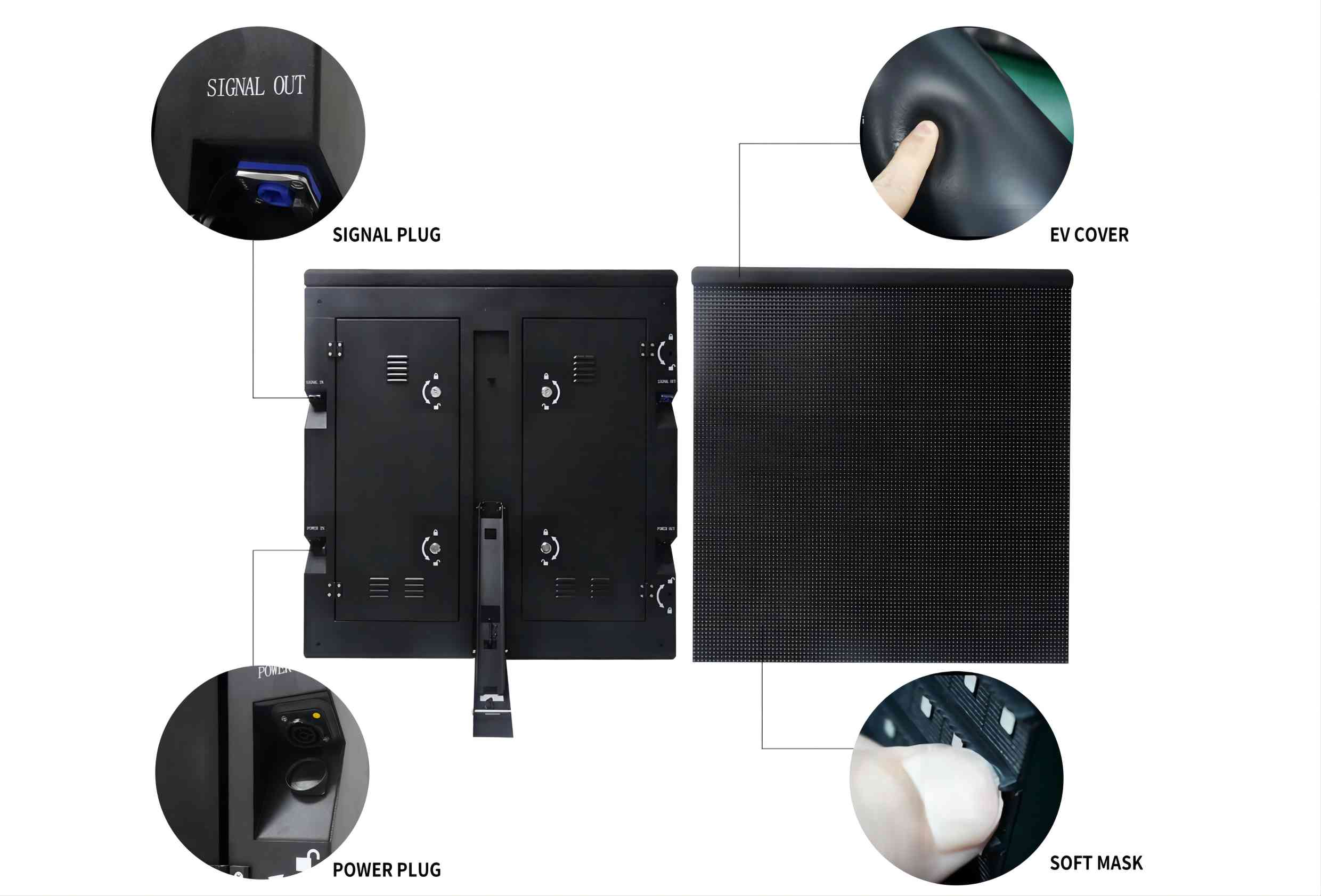

Cabinet  Details:


uploads/image/20220925/1664106481.jpg

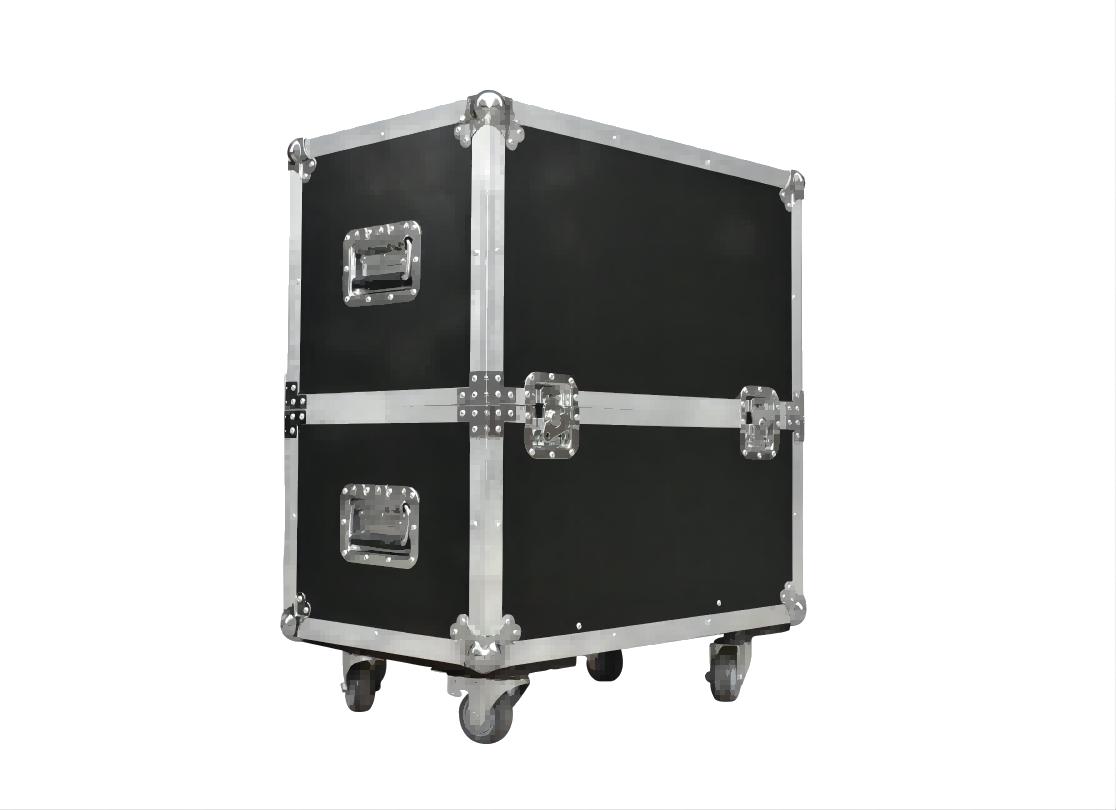

Package:



uploads/image/20220925/1664107476.png






Product Specification

Get more details about our outdoor LED display screen by reading the product specification below. If you have any questions about this stadium LED screen, please contact us. Our professional team is ready to help you.




Number

Parameter

Parameter

Unit

Pixel pitch

8mm

10mm

mm

Cabinet Resolution

96W* (H)96

96W* (H)96

Dots

Pixel configuration

SMD3535

SMD3535


LED Encapsulation

SMD3535 white lamps

SMD3535 white lamps


Pixel Density

15625

10000

dots/m2

Driving Method

1/5

1/2

scan

Refresh Frequency

1920 or 3840

1920 or 3840

Hz

Driving IC

ICN2037 or Other

ICN2037 or Other


Grey Scale

≥16Bit

≥16Bit

Bit

Cabinet Dimension

960*960

960*960

mm

Module size

320*160

320*160

mm

Brightness

5500

6000

cd/ m2

CCT

8000K±500

8000K±500

K

contrast ratio

5000:1

5000:1


Working Voltage

V140°  H120°

V140°  H120°


Power Supply

ANY BRAND

ANY BRAND


Working voltage

AC 220V/110V ±10%

AC 220V/110V ±10%


Module voltage

DC5V

DC5V

V

Average power consumption

650

800

W/pcs

lifespan

100000

100000

hours

Working environment

-10℃ 65℃

-10℃ 65℃

Net-weight

65

65

Kg/cabinet
