LK-RA Rental Series
| indoor/outdoor: 2.976mm |3.91mm |4.81mm |5.95mm |
Product Overview:

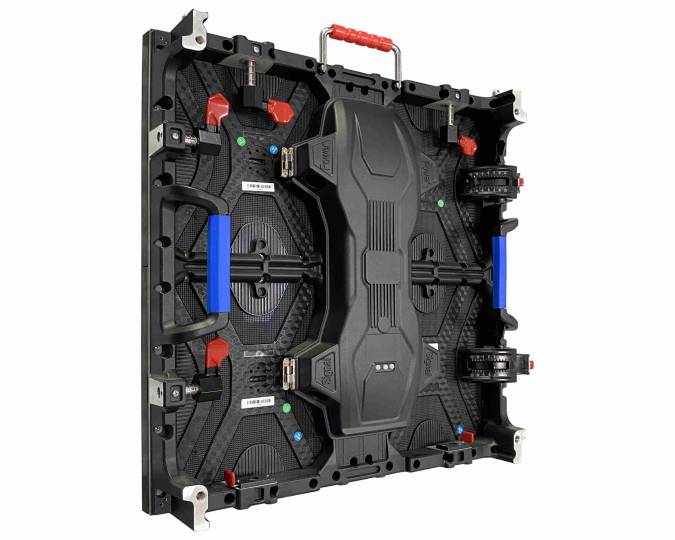

LEDlink LK-RA series is an indoor and outdoor rental LED display, which is a great LED display solution for advertising. Its die-casting aluminum frame makes it much more sturdy and durable than other rental LED screens on the market. This rental LED display is available in the following pixel pitches: 2.976mm, 3.91mm, 4.81mm, 5.95mm.
 | High-performance LED -- LEDlink tailors LED with high contrast black LED 3-in-1 Waterproofness & nice Frame -- With IP65 waterproofness and the large frame design, this rental LED display is the preferred solution for outdoor advertising. It’s available in modular 500*500mm or 500*1000mm frame. Robust Driver IC -- It generates lower heat that can protect electronic components. With PWM+DES functions, this LED display is high refresh rate & grayscale and more energy-saving. Brilliant Module Design -- 250*250mm LED module is easy to maintain. And it only has one connector for better waterproofing. This rental LED display can change many times to protect the LEDs from damaging. Modular Design --Integrated detachable control box, the rental LED display is easy to maintain. Compatibility -- LED display modules are compatible with 500*500mm and 500*1000mm cabinets. |
Product Specification:
This series provides product specification of outdoor LED display and indoor LED display. If you have any questions about this rental LED display, please contact us by filling our form. Whatever you need an outdoor LED display or an indoor LED screen, we can offer you the best LED display to meet all your needs.
Outdoor specifications
Items | Parameter | |||
Pixel pitch | P2.976 | P3.91 | P4.81 | P5.95 |
Dot distance(mm) | 2.976 | 3.91 | 4.81 | 5.95 |
LED type | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
Module resolution(dots) | 84*84 | 64*64 | 52*52 | 42*42 |
Driving method(scan) | 1/14 | 1/8 | 1/9 | 1/7 |
Density(dot/m²) | 112892 | 65536 | 43264 | 28224 |
Brightness(cd/m²) | 4500 | 5000 | 4500 | 5000 |
Working voltage (V) | 110/230VAC | |||
Working temperature | -20℃-60℃ | |||
Cabinet material | Die-casting Alu | |||
Cabinet size(mm) | 500*500 or 500*1000 | |||
Cabinet weight | 8-12kg | |||
support hanging(yes/no) | yes | |||
Best viewing distance | ≥3 | ≥4 | ≥5 | ≥6 |
Maintenance | rear | |||
Max power consumption(W/m²) | 650 | 700 | 700 | 700 |
Average power consumption(W/m²) | 300 | 300 | 300 | 300 |
Gray scale | 16bits | |||
Refresh rate(Hz) | 1920 or 3840 | |||
IP grade | IP rear54/ front65 | |||
Life span(hours) | 100000 | |||
Indoor specifications
Items | Parameter | |||
Pixel pitch | P2.6 | P2.976 | P3.91 | P4.81 |
Dot distance(mm) | 2.6 | 2.976 | 3.91 | 4.81 |
LED type | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
Module resolution(dots) | 96*96 | 84*84 | 64*64 | 52*52 |
Driving method(scan) | 1/32 | 1/28 | 1/16 | 1/13 |
Density(dot/m²) | 147456 | 112892 | 65536 | 43264 |
Brightness(cd/m²) | 800-1500 | 800-1500 | 800-1500 | 800-1500 |
Working voltage (V) | AC220V/110V | |||
Working temperature | -20℃-60℃ | |||
Cabinet material | Die-casting Alu | |||
Cabinet size(mm) | 500*500/500*1000 | |||
Cabinet weight | 8-12kg | |||
support hanging(yes/no) | yes | |||
Best viewing distance | ≥3 | ≥3 | ≥4 | ≥5 |
Maintenance | Rear/front | |||
Max power consumption(W/m²) | 500 | 450 | 450 | 500 |
Average power consumption(W/m²) | 150-200 | 150-200 | 150-200 | 150-200 |
Gray scale | 16bits | |||
Refresh rate(Hz) | 1920 or 3840 | |||
IP grade | IP rear45/ front54 | |||
Life span(hours) | 100000 | |||
