Focusing on LED displays manufacturing for 10 years, LEDlink can provide durable and HD LED display screens for customers all around the world.
Product Details Product Quotation

LK-ES Energy-saving Series

Rear service


High Quality with high brightness low  power comsumption LED Screen for outdoor Appication


Features:

  • 1,Customized size according to site situation

  • 2,SMD common cathod LED Encapsulation technology

  • 3,Frontal or Rear Maintenance for Easy Installation

  • 4,Various Pixel Pitch P3.33 P4 P5 P5.95 P6.667 P8 P10 etc

  • 5,CE,ROHS FCC Approved

  • 6,2Year Warranty and 3% Spare Part






uploads/image/20220713/1657701115.jpg

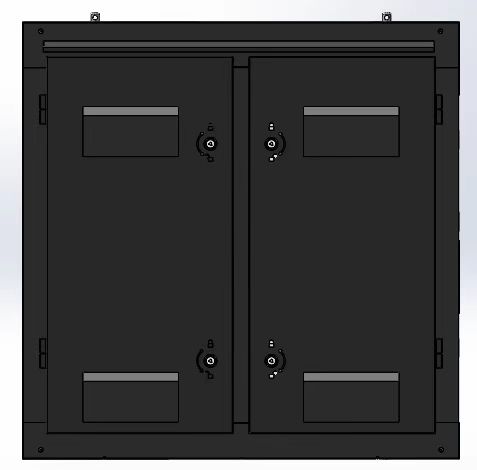

Back side of cabiet details

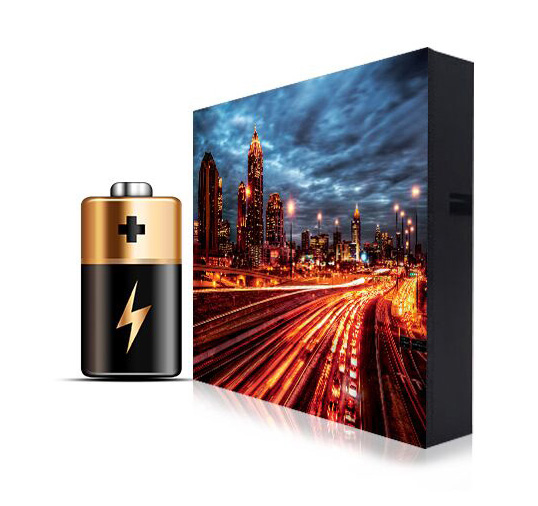

Energy Saving



Ultra low heat and low power consumption, saving cost and the outdoor Fixed installation LED display keep excellent visual experience.


uploads/image/20220713/1657711594.jpg



uploads/image/20220716/1657965025.jpg







320*320 Series

Description

Specification

Units

Pixel pitch

6.667

8

10


Density

22477

15625

10000

dot//

Lamps

SMD3535

SMD3535

SMD3535


IC

ICN2049 or ICN2069

ICN2049 or ICN2069

ICN2049 OR ICN2069

ICN2049 OR ICN2069

Driving method

1/6

1/5

1/2

scan

Module Ample

R:5.5/GB:9

R:5.5/GB:9

R:5.5/GB:9

A

Module size

320*320

320*320

320*320

mm

Module resolution

48*48

40*40

32*32

dots

Cabinet size

960*960

960*960

960*960

mm

Cabinet resolution

144*144

120*120

96*96

dots

Cabinet weight

46

46

46

kg

Cabinet material

Iron/Alu

Iron/Alu

Iron/Alu


Brightness

6000

5500

6000

cd/

View angle

140 Horizontal, 140 Vertical


Certificate

CE/RHOS/FCC


Working voltage

R:2.8v/GB:3.8v

v

Infrequence

50-60HZ

HZ

Max power consumption

500

W/

Average power consumption

150-200

W/


Operating temperature

-20 min / +45 max

°C

Storage temperature

-20 min / +60 max

°C

Operating humidity

20% min / 70% max

°C

Storage humidity

30% min / 85% max

°C

Best viewing distance

7

8

10

m

Maintenance

front

front

front


Gray scale

16

bit

Refresh rate

1920 or 3840

Hz

IP grade

Front65/Bck54


Life span

100,000

hours

Video input

DVI/HDMI


Warranty

2 YEARS









320*160 Series


Description

Specification

Units

Pixel pitch

3.33

4

5

5.95

8

10


Density

90000

62500

40000

28475

15625

10000

dot//

Lamps

SMD1921

SMD1921

SMD2727

SMD2727

SMD3535

SMD3535


IC

ICN2049 or ICN2069

ICN2049 or ICN2069

ICN2049 or ICN2069

ICN2049 or ICN2069

ICN2049 or ICN2069

ICN2049 or ICN2069


Driving method

1/12

1/10

1/8

1/7

1/5

1/2

scan

Module Ample

R:4/GB:5.5

R:4/GB:5.5

R:3.5/GB:5

R:3.2/GB:4.5

R2.8+GB4.6

R:2.8/GB:4.5

A

Module size

320*160

mm

Module resolution

96*48

80*40

64*32

54*27

40*20

32*16

dots

Cabinet size

960*960

mm

resolution

288*288

240*240

192*192

162*162

120*120

96*96

dots

Cabinet weight

46

kg

Cabinet material

Iron/Alu


Brightness

5500

5500

5500

6000

5500

6000

cd/

View angle

140 Horizontal, 140 Vertical


Certificate

CE/RHOS/FCC


Working voltage

R:2.8v/GB:3.8v

v

Infrequence

50-60HZ

HZ

Max power consumption

500-550

W/

Average power consumption

150-200

W/

Operating temperature

-20 min / +45 max

°C

Storage temperature

-20 min / +60 max

°C

Operating humidity

20% min / 70% max

°C

Storage humidity

30% min / 85% max

°C

Best viewing

distance

3

4

5

6

8

10

m

Maintenance

front


Gray scale

16

bit

Refresh rate

1920 or 3840

Hz

IP grade

Front65/Bck54


Life span

100,000

hours

Video input

DVI/HDMI


Warranty

2 YEARS
