LEDLINK LK-SA Stadium&rental Series



  • 960*960mm LED Display Cabinet

  • High precision Magnesium Alloy Cabinet

  • Indoor & Outdoor Can be Used

  • Fixed Installation, Rental, or Perimeter Sports

  • 2 Years Warranty and 3% Spare Part.


uploads/image/20220721/1658402534.jpg

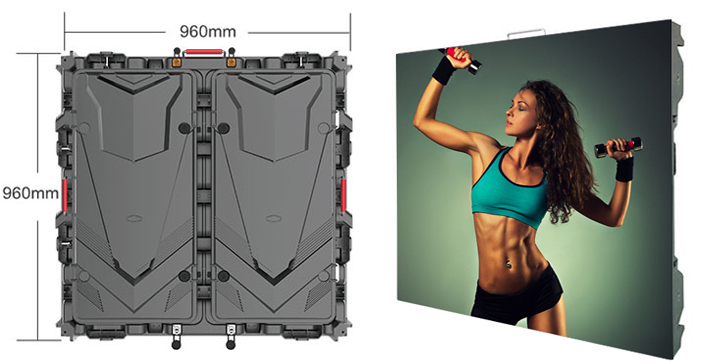

960*960 Magnesium Alloy Cabinet Light and Nice Design Led Display

LK-SA Series Magnesium Alloy LED Display is LEDLINK's multi-function LED display, this LED display cabinet size is 960mm×960mm standard size, and can be used as indoor fixed installation LED Display, outdoor fixed installation LED display, rental LED display, perimeter sports LED Display, advertising LED display and so on.




uploads/image/20220721/1658399941.jpg

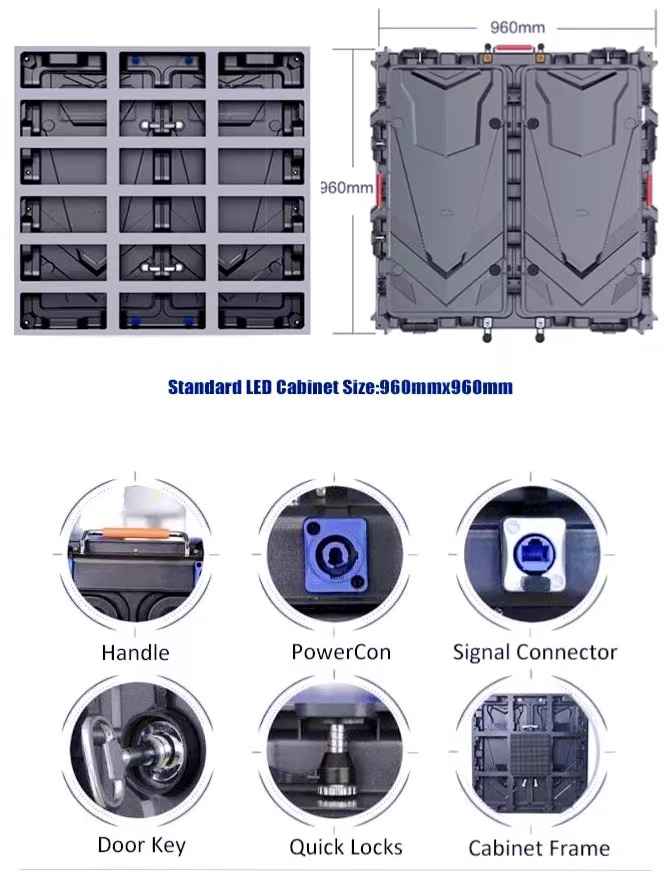

Cabinet Details





uploads/image/20220721/1658405571.jpg

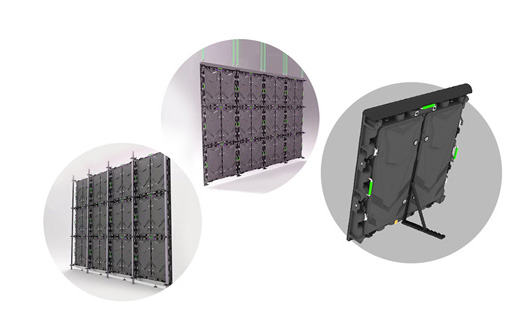

LED cabinet Multi-finctional installation way



Stand on The Floor as stadium display with adjustable angle holder

The cabinet can be hanging

the cabinet can be used as rental


uploads/image/20220721/1658402408.jpg








uploads/image/20220721/1658400931.jpg





Specification:


Description

Specification

Units

Pixel pitch

2.5

3.07

4

5

8

10


Density

160000

105625

62500

40000

15325

10000

dot/sqm

Lamps

SMD1415

SMD1415

SMD1921

SMD1921

SMD3535

SMD3535

SMD

IC

ICN2037

ICN2037

ICN2037

ICN2037

ICN2037

ICN2037

ICN

Driving method

1/16

1/13

1/10

1/8

1/5

1/2

scan

Module Ample

13

9

8.5

8

8

8.5

A

Module size

320*160

mm

Module resolution

128*64

104*52

80*40

64*32

40*20

32*16

dots

Cabinet size

960*960

mm

resolution

384*384

312*312

240*240

192*192

120*120

96*96

dots

Cabinet weight

46

kg

Cabinet material

Iron/Alu

M

Brightness

6000

5500

5500

5500

5000

5500

Cd/m2

View angle

140 Horizontal, 140 Vertical

Degree

Certificate

CE/RHOS/FCC

CE

Working voltage

5v

v

Infrequence

50-60HZ

HZ

Max power consumption

1250

880

850

800

800

850

W/m2

Average power consumption

550*600

350*400

350-400

320-360

320-360

350-400

W/m2

Operating temperature

-20 min / +45 max

°C

Storage temperature

-20 min / +60 max

°C

Operating humidity

20% min / 70% max

°C

Storage humidity

30% min / 85% max

°C

Best viewing distance

3

3

4

5

8

10

m

Maintenance

rear

rear

Gray scale

16

bit

Refresh rate

1920 or 3840

Hz

IP grade

Front65/Bck54

grade

Life span

100,000

hours

Video input

DVI/HDMI

other

Warranty

2 YEARS

years
