LK-RL SERIES


|P2.6|P2.976|P3.91|P4.81|P5.95|





Product Overview:


LEDlink LK-RL series is a great LED display for rental. With modular design, it's lightweight and front service for both indoor and outdoor. If you need a rental LED video wall for advertising or temporary events, this LED display will be your perfect choice. This HD LED display is available in the following pixel pitches:  2.976mm, 3.91mm, 4.81mm, 5.95mm.



Product Features:


High-performance LEDs:

LEDlink designs LED with high contrast black LED 3-in-1.


Waterproofness:

The waterproof rating is IP65, and this outdoor led video wall can be used in various applications.


Robust Driver IC:

It produces lower heat that can protect electronic components. With PWM+DES functions,  this LED display is high refresh rate & grayscale and more energy-saving.


Brilliant Module Design:

250*250mm LED module is easy to maintain. And it only has one connector for better waterproofing. All corners can be protected.


Easy Maintenance:

This indoor & outdoor LED display adopts rear service with magnet.

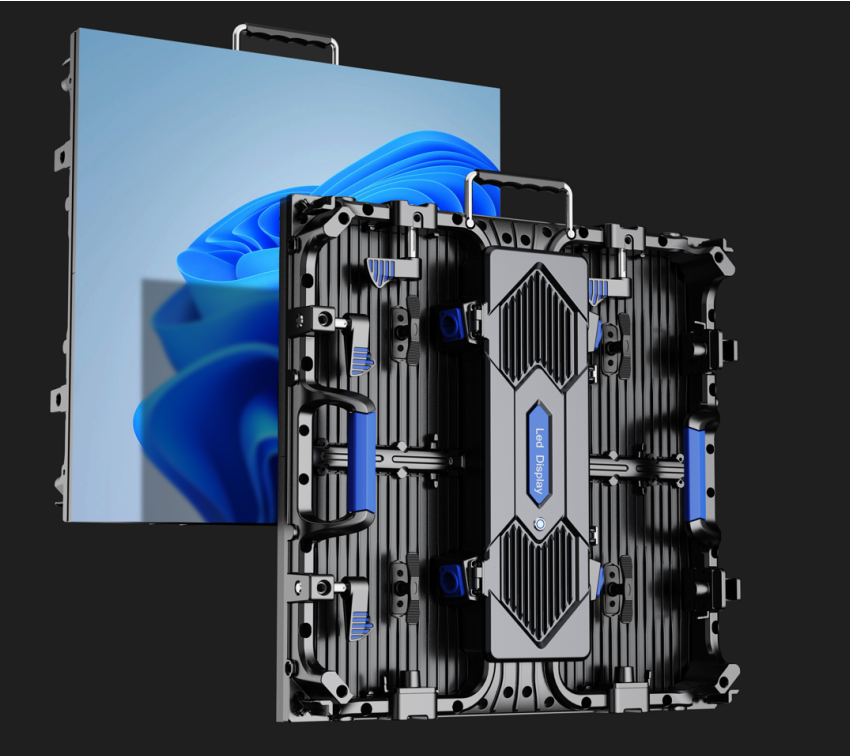

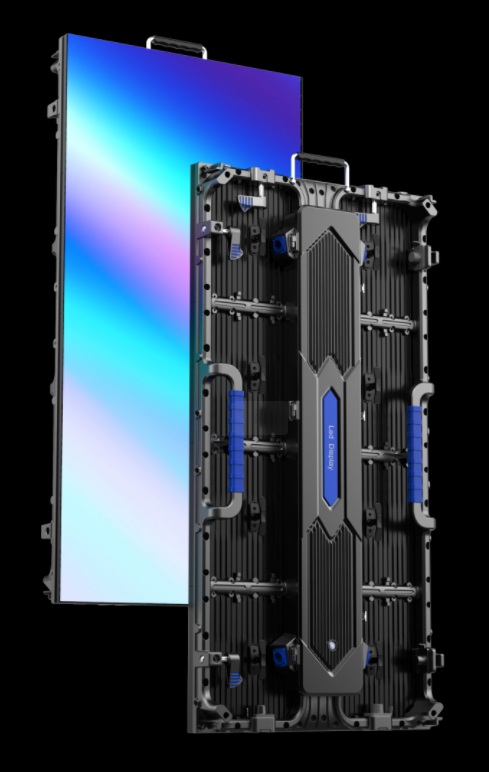

Excellent 45 degree Cabinet design:

It's a quite nice design LED display. Its inner and out curve can be set into a circle shape.


uploads/image/20240902/1725275426.pnguploads/image/20240902/1725272814.png




uploads/image/20220925/1664109696.jpg







uploads/image/20220925/1664107864.jpg





Product Specification:

Here provides product specification of LK-RL series outdoor LED display and indoor LED display. If you have any questions about this outdoor & indoor LED display screen, please contact us by filling our form. Whatever you need an outdoor LED display or an indoor LED screen, we can offer you an ideal LED display solution.




DESCRIPTIONINDOOR RENTAL SERIES REAR&FRONT SERVICE SERIEOUTDOOR RENTAL SERIES REAR&FRONT SERVICE SERIEUNITS
PIXEL PITCHP2.6P2.9P3.91P4.81P2.6P2.9P3.91P4.81
BRIGHTNESS≥500-800≥500-800≥500-800≥500-800≥4500≥4500≥4500≥4500CD
REFRESH RATE1920 or 38401920 or 38401920 or 38401920 or 38401920 or 38401920 or 38401920 or 38401920 or 3840Hz
SERVICEFront or RearFront or RearFront or RearFront or RearFront or RearFront or RearFront or RearFront or Rear
SCAN 1/32'1/211/161/13 1/241/21 1/16 1/13 scan
DRIVER ICICN2038 or ICN2153ICN2038 or ICN2153ICN2038 or ICN2153ICN2038 or ICN2153ICN2038 or ICN2153ICN2038 or ICN2153ICN2038 or ICN2153ICN2038 or ICN2153
LED TYPE14152020202020201415141519211921SMD
MODULE SIZE250*250250*250250*250250*250250*250250*250250*250250*250MM
MODULE RESOLUTION96*9684*8464*6452·5296*9684*8464*6452·52Dots
CABINET SIZE
(W×H)		500*500/ 500*1000500*500/ 500*1000500*500/ 500*1000500*500/ 500*1000500*500/ 500*1000500*500/ 500*1000500*500/ 500*1000500*500/ 500*1000MM
CABINET MATERIALdie-casting Aludie-casting Aludie-casting Aludie-casting Aludie-casting Aludie-casting Aludie-casting Aludie-casting Alu
CABINET CONFIGURATION2*2 or 2*42*2 or 2*42*2 or 2*42*2 or 2*42*2 or 2*42*2 or 2*42*2 or 2*42*2 or 2*4PCS
CABINET RESOLUTION192*192 or 192*384192*192 or 192*384192*192 or 192*384192*192 or 192*384192*192 or 192*384192*192 or 192*384192*192 or 192*384192*192 or 192*384DOTS
CABINET WEIGHT8 or 128 or 128 or 128 or 128 or 128 or 128 or 128 or 12KG
VIEWING ANGLEH:160  V:140 H:160  V:140 H:160  V:140 H:160  V:140 H:160  V:140 H:160  V:140 H:160  V:140 H:160  V:140
CERTIFICATIONSCE.RoHS,CCCCE.RoHS,CCCCE.RoHS,CCCCE.RoHS,CCCCE.RoHS,CCCCE.RoHS,CCCCE.RoHS,CCCCE.RoHS,CCC
OPERATING POWER VOLTAGE90-24090-24090-24090-24090-24090-24090-24090-240Volts
OPERATING FREQUENCY50-6050-6050-6050-6050-6050-6050-6050-60Hz
POWER CONSUMPTION500500500500650650650650W/m²
OPERATING TEMPERATURE20 min/+45 max20 min/+45 max20 min/+45 max-20 minl+45 max20 min/+45 max20 min/+45 max20 min/+45 max-20 minl+45 max°C
STORAGE TEMPERATURE20 min/+60 max20 min/+60 max20 min/+60 max20 min/+60 max20 min/+60 max20 min/+60 max20 min/+60 max20 min/+60 max°C
OPERATING HUMIDITY20%min/70%max20%min/70%max20%min/70%max20%min/70%max20%min/70%max20%min/70%max20%min/70%max20%min/70%max
STORAGE HUMIDITY30%min/85%max30%min/85%max30%min185%max30%min/85%max30%min/85%max30%min/85%max30%min185%max30%min/85%max
LIFE SPAN100000100000100000100000100000100000100000100000HOURS
VIDEO INPUTDVVHDMIDVVHDMIDVVHDMIDVVHDMIDVVHDMIDVVHDMIDVVHDMIDVVHDMI
PROTECTION LEVELDepends Depends Depends Depends Depends Depends Depends Depends
DISPLAY RESOLUTION14745611289665410432221474561128966541043222Pixels/m²
 BRIGHTNESS CONTROL256 steps Auto or manual256 steps Auto or manual256 steps Auto or manual256 steps Auto or manual256 steps Auto or manual256 steps Auto or manual256 steps Auto or manual256 steps Auto or manual
GREY SCALE RESOLUTION  16bits16bits16bits16bits16bits16bits16bits16bits
